EPIC 8000L Fingerprint
Digital Lock
EPIC 8000L Fingerprint Digital Lock Review
EPIC 8000L Fingerprint Digital Lock is one of the best seller since 2012
EPIC 8000L is the slimmest fingerprint mortise digital lock you can find in the market
Despite so many years, customers still purchase this model because of its design, affordablility and it posses all the necessary functions you need
If you existing mechanical lock is faulty, you can consider this model to replace it if you have a tight budget
360 Airtouch Fingerprint sensor
The fingerprint accuracy is much higher than many other model as it have been develop over 10 years to perfect all its function

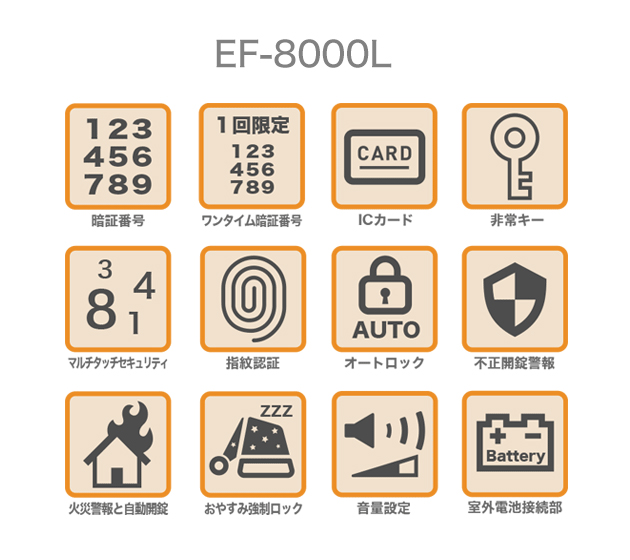

Full functionality
Fingerprint authentication
You can register fingerprints of up to 100 fingers.
IC Card
Up to 30 IC cards can be registered.
PIN
You can register any number from 4 to 12 digits.
One-Time PIN
This is a PIN that can only be unlocked once. This is convenient when visiting guests.
Emergency Key
A mechanical key that can also be used as an administrator.
Auto Lock
It is a function that locks automatically when the door is closed. It can be set to enable or disable.
PIN Code Cheating Function
Even when there are people nearby, you can unlock by cheating on your PIN.
Volume Setting
It can be set in 7 steps.
Mute Function
It is possible to unlock quietly without playing the melody when returning home at midnight.
Multi-Touch Security Settings
It is a function that can be set to enter the 3-digit number displayed after entering the PIN.
Outdoor Battery Connection
Even if the battery in the indoor unit runs out, it can be unlocked by connecting a square 9V alkaline battery (sold separately) to the outdoor unit.
Unauthorized Unlock Alarm
If a thief tries to force it open, it will threaten with an alarm.
Fire Alarm and Automatic Unlocking
When the indoor unit detects a temperature of about 62 ° C (± 5 ° C), it sounds an alarm and unlocks automatically.
Good night forced lock
With the function that can disable unlocking from the outside, you can sleep with peace of mind even when you go to bed at night.
Product specifications
Corresponding door thickness | 40-50mm |
---|---|
Back set | 71mm |
Unlocking method | 1 type of PIN (4-12 digits) One-time PIN 1 type (4-12 digits) IC card (Mifare®) Up to 30 can be registered, 2 stickers and 2 tags are included Fingerprint authentication Up to 100 fingers can be registered Includes 2 emergency keys |
Battery life | Approximately 1 year (* 1) when used 10 times a day |
Rated voltage | DC6V (8 AA alkaline batteries) |
Emergency power supply | DC9V (9V type square alkaline battery, sold separately) |
Size | Outdoor unit Length 304mm x Width 83mm x Thickness 22mm (handle part not included) Indoor unit Length 304mm x Width 80 x Thickness 28mm (Handle part not included) Lock case Length 110mm x Width 25 x Thickness 106mm Strike Length 106mm x Width 21mm × Thickness 19.5mm |
Warranty period | 1 year from the date of purchase |
- 1 Varies depending on the usage environment and batteries. We recommend Panasonic’s EVOLTA.
- Please avoid installing at the entrance where the outdoor unit is exposed to rain. There is no problem if you have an eaves.
- Since the indoor unit is not waterproof, the indoor unit cannot be installed in an outdoor location.
